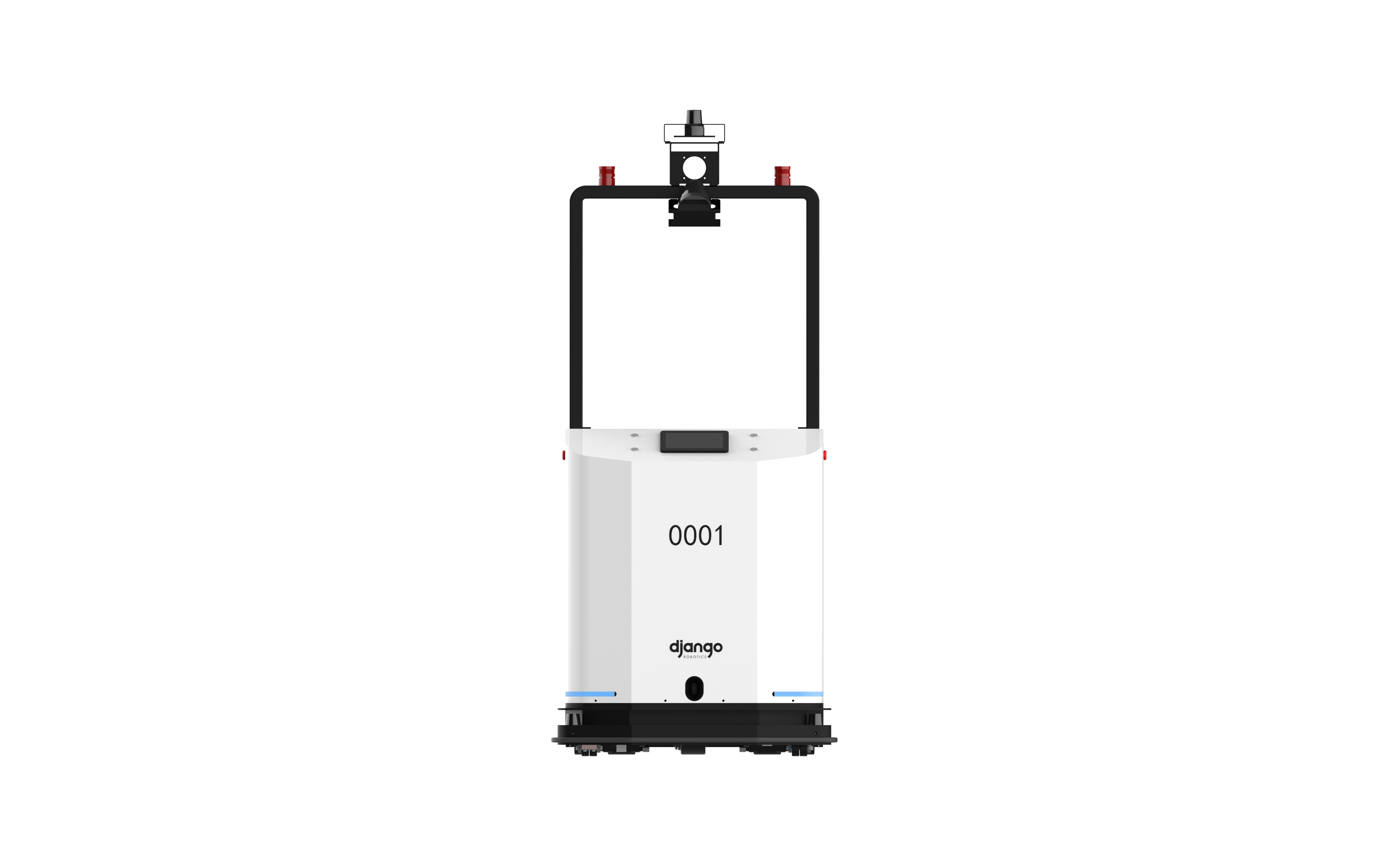

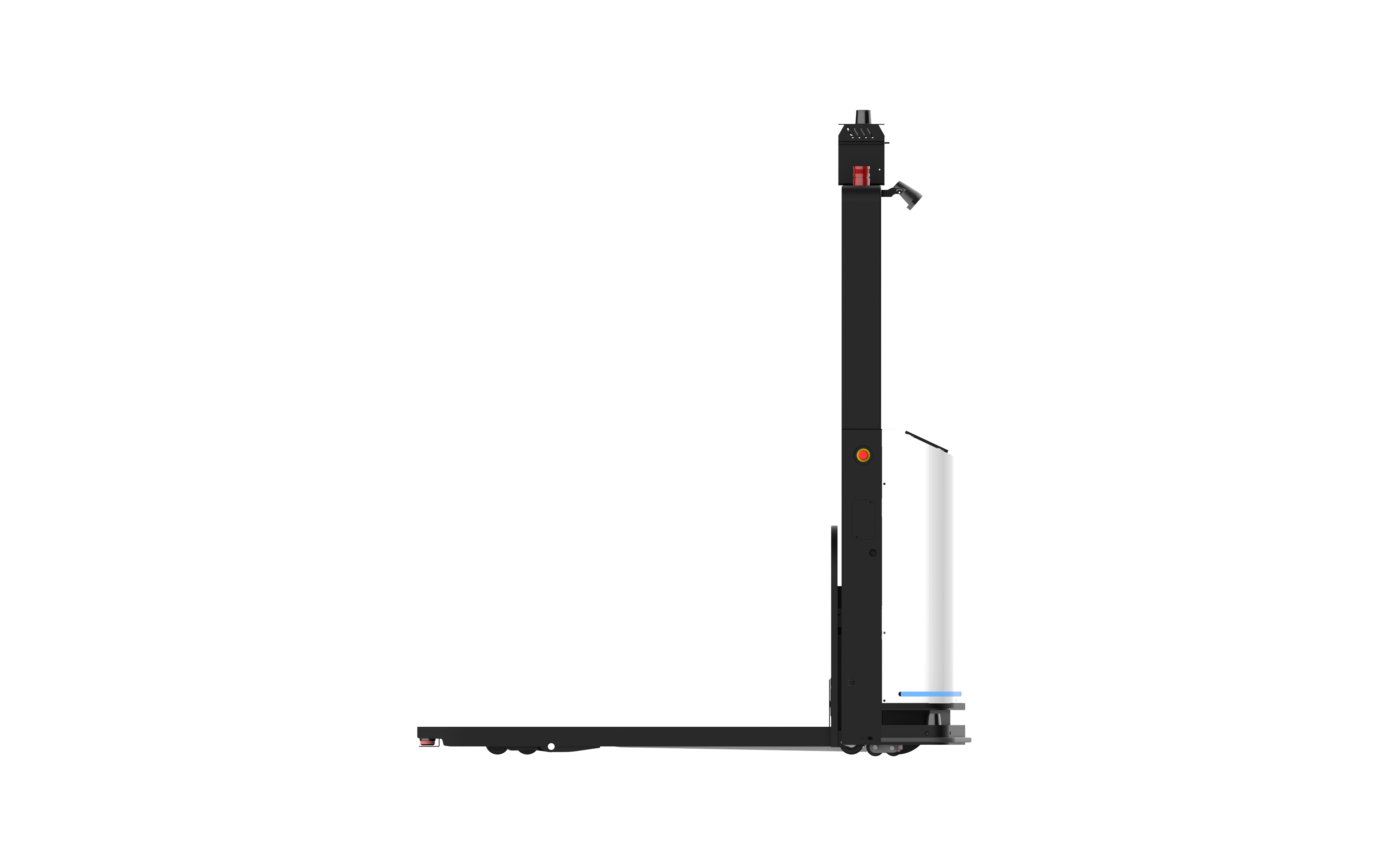

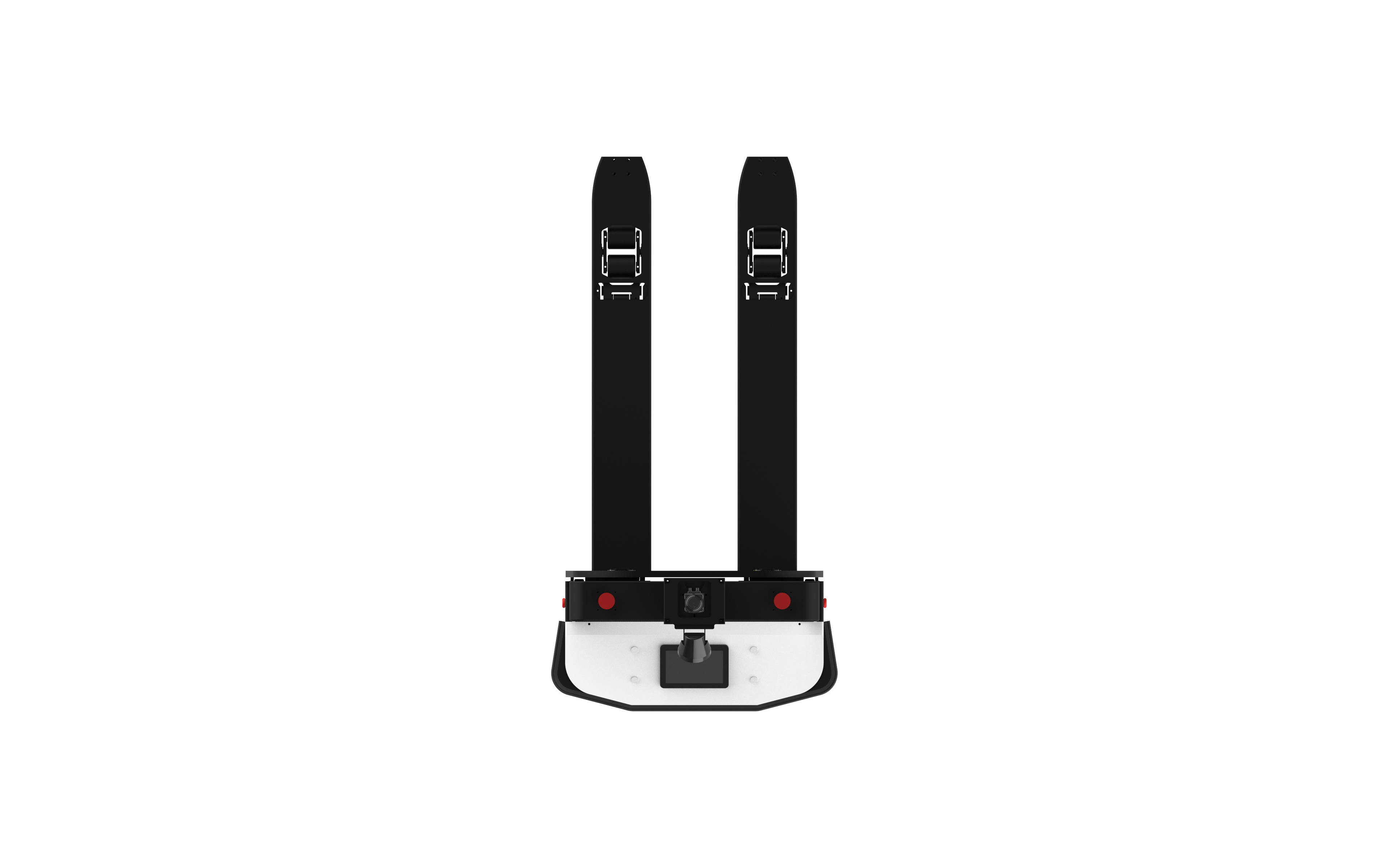

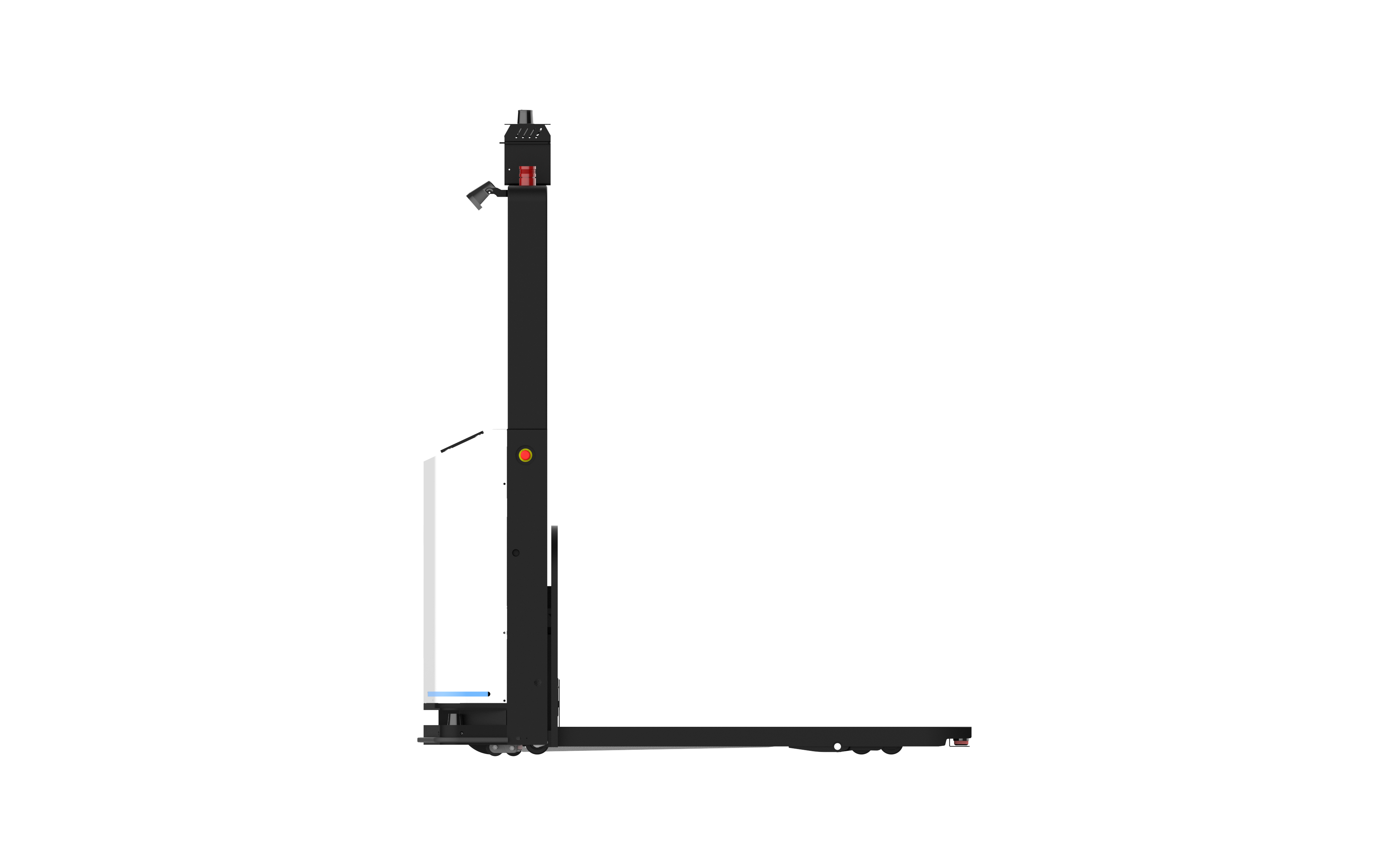

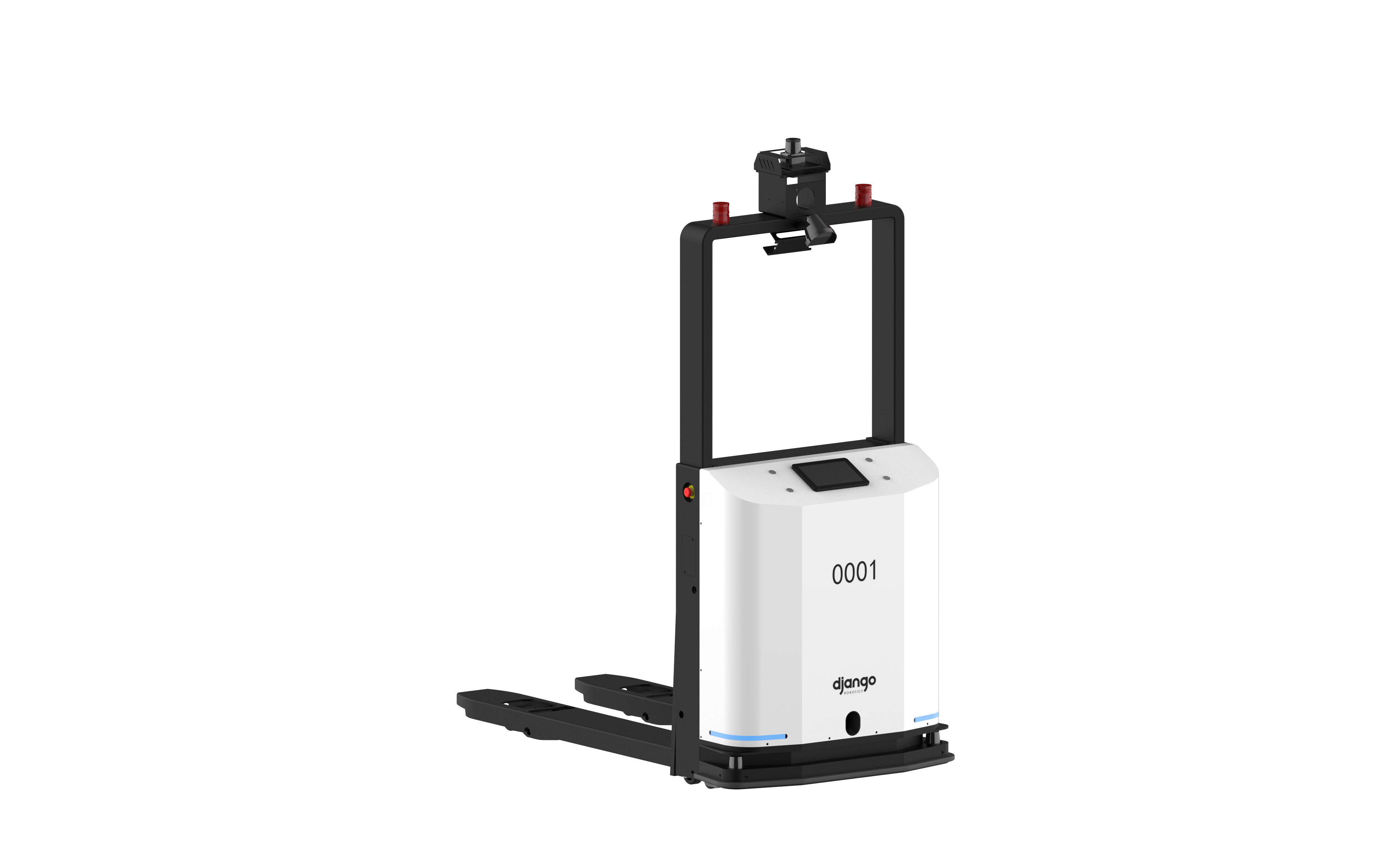

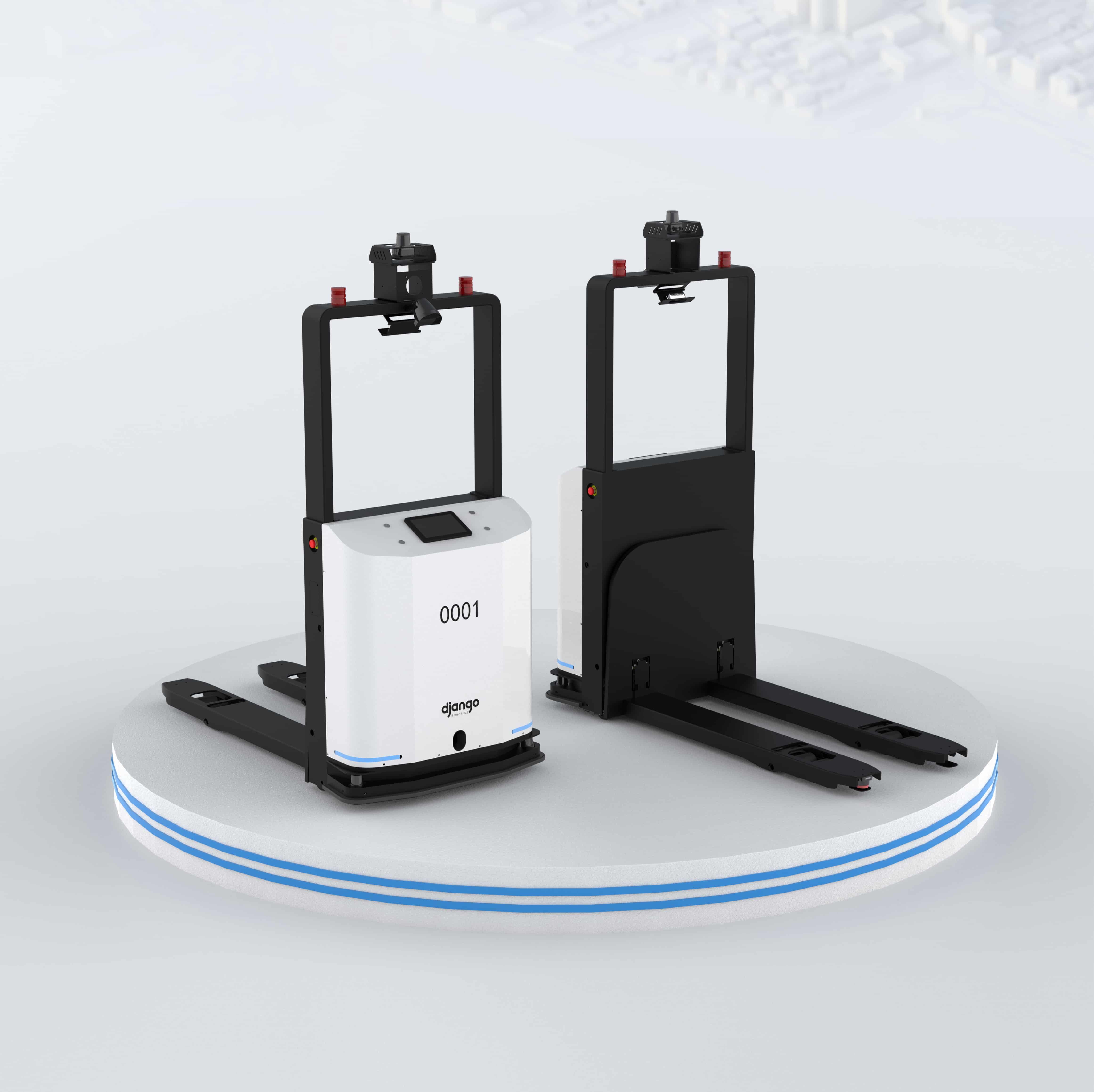

Pallet Master

Pallet Master Series

Download product manual

Body

Self-Weight: 420kg
Size: 1600*790*1950mm

Capability

Rated Load: 1500kg
Rotation Radius: 1330mm

Battery

Charging Duration: ≤1.5h
Working Hours: 6h

Environment

Maximum Speed:1.3m/s

Maximum Payload: 2000kg

Pallet Sizes: 1200mm * 800mm
1200mm * 1000mm

Docking accuracy: ± 5mm

Channel Width: 1600mm

Support Tray: Square Tray Grid Tray

Temperature: 0℃～+45℃

Humidity: 0%～80%

Safety System Protection

Anti collision strip/Emergency stop/Depth camera/Radar

Wifi

Wireless Network Protocol Wi Fi: 802.11a/b/g/n/ac/ax

Product Advantages

Pallet Compatibility

Support multiple international pallets

Self-developed

High precision identification of pallets

AI Avoidance

AI algorithm obstacle avoidance

Stability

Cargo sway at 2 meter height is kept under 5 degrees

Spatial Adaptability

Compact turns
Narrow passages

Climbing

Unloaded: 7°
Fully loaded: 3°
